Horizontal Constant Spring Hanger technical overview.
Horizontal Constant Spring Hanger from JINYI is specified by its application, material and connection or drawing requirements. Review the selection schedule and enquiry requirements below to prepare a quotation for your project.
On this page
Specification basis: The schedule below distinguishes industry geometry from order-specific requirements. Final dimensions, performance and price are defined in the approved quotation and drawing. Photographs identify the product family.
What is a horizontal constant spring hanger?
A horizontal constant spring hanger uses a spring and compensating mechanism to support a specified load while the pipe moves through its designed travel. Its horizontal arrangement suits installations where a different mounting envelope is needed from a vertical can-type hanger.
Key dimensions and installation fit
A constant effort unit must be selected by design load, total movement, mounting type and available space together. Horizontal suspension and compact floor support are different arrangements. Obtain the selected unit’s load/travel curve, setting schedule and acceptance test requirements; another maker’s catalogue range is not a JINYI capacity. Compare related configurations: compact constant spring support, spring pipe hanger.
How to specify the horizontal constant spring hanger
Provide operating load, installed position, total travel and movement direction. Show the connection centres, supporting steel and pipe attachment. State the permitted load deviation and inspection requirements; the term constant does not imply zero variation under every condition.
Select a constant support from the combined design load, total travel, direction of movement and mounting arrangement. State cold and hot settings and allow travel reserve. Housing dimensions and rod or base connections follow the selected model; they cannot be inferred from the product photograph.
Technical data for the horizontal constant spring hanger
| Support type | Horizontal constant effort hanger |
|---|---|
| Design load | Specify the required operating load in kN |
| Total travel | Specify movement, direction and travel reserve in mm |
| Mounting arrangement | Suspension or base support to installation drawing |
| Load variation | Agreed acceptance band over the working travel |
| Cold and hot settings | Set from the pipe stress analysis |
| Adjustment range | Confirmed for the selected support size |
| Travel stops | Defined for transport, erection and testing |
| Connections and envelope | Rod, pin, base and access dimensions to drawing |
| Factory acceptance | Load/travel test and setting record as agreed |
Sizes and dimensional requirements
Use the named standard for standardized interfaces and the controlled drawing for custom dimensions. Confirm units, diameter datums, minimum finished thickness and any mating-component requirements. A catalogue dimension is not a universal tolerance, capacity or pressure rating.
Dimensions and tolerance schedule
| Individually toleranced features | Limits and datum system on the approved drawing |
|---|---|
| General tolerances | Standard, edition and class apply only when specified |
| Constant-effort acceptance | Agreed load variation over the complete working travel |
A constant effort unit must be selected by design load, total movement, mounting type and available space together. Horizontal suspension and compact floor support are different arrangements. Obtain the selected unit’s load/travel curve, setting schedule and acceptance test requirements; another maker’s catalogue range is not a JINYI capacity.
Materials, inspection and documentation
Request a setting schedule and a load-versus-travel test record for the ordered support. Identify the cold/hot positions and travel stops. Keep installation locking devices in the specified position until the piping commissioning sequence allows release. Check the movement indicator and complete load path after installation.
State the exact material designation and supplied condition, the controlled drawing revision and the required inspection reports before ordering. Separate material certification from dimensional checks and functional or pressure testing. Agree the acceptance limits for the ordered component and identify any additional witnessing, marking or packing requirements. Use the pipe support and casing manufacturing guidance to confirm fabrication and inspection requirements.
Installation and handling guidance
Check the load and travel indicators against the hanger schedule. Transport or installation locks are released in the sequence defined by the supplier instructions and piping commissioning plan. Do not use spring adjustment to correct an unrelated alignment error.
Where the horizontal constant spring hanger is used
- Thermally moving pipework. Supporting lines where a controlled supporting force is required over travel.
- Equipment connections. Limiting changing reactions through the support design.
- Power and process plants. Project-selected assemblies with documented cold and hot settings.
How to order a horizontal constant spring hanger
Send the required configuration, material, quantity, destination and controlled drawing to JINYI. Identify changed dimensions, mating components, operating conditions and inspection scope. For a repeat order, include the previous approved revision and state any changes. The final quotation defines the supplied geometry, documentation, price and delivery terms.
Quantity prices and order preparation
| 1–9 pcs | US$100.00 / piece |
|---|---|
| 10–49 pcs | US$100.00 / piece |
| 50+ pcs | US$100.00 / piece |
Indicative budget pricing selected from public supplier listings. Selected lower amount from the US$100–1,000 constant-hanger/support family listing with a 20-piece supplier minimum. Actual load, travel and suspension arrangement require selection. Keheng spring hanger catalogue. Final JINYI pricing depends on the confirmed specification, quantity, inspection and delivery scope. Quantity-specific terms are confirmed with the final quotation.
Engineering and pricing references
SANWA constant spring hanger selection guidance. These sources explain the named product geometry or selection method. Their certifications, rated capacities and manufacturing capabilities belong to the named organizations.
Other JINYI products worth comparing
Review the pipe supports and hangers catalog for adjoining components, connection choices and alternative product forms.
Request a horizontal constant spring hanger quotation from JINYI with the drawing, material and quantity required for your project.
Horizontal Constant Spring Hanger selection and quotation checklist
The horizontal constant-load arrangement differs from a variable spring hanger. Provide the full movement path, design load and available installation envelope before choosing the mechanism. Use the photographed product form to identify the arrangement, then use the controlled drawing to define what will be supplied. Similar-looking components can have different end details, load paths or maintenance requirements.
Horizontal Constant Spring Hanger dimensions and tolerances
The first comparison for this horizontal constant spring hanger is horizontal layout and working travel. Mark the dimensions that control mating, alignment and installation space on the enquiry drawing. Give units for every value and identify the datum from which it is measured. If a dimension is critical, specify its individual tolerance and measurement method rather than relying on a general tolerance note.
A constant effort unit must be selected by design load, total movement, mounting type and available space together. Horizontal suspension and compact floor support are different arrangements. Obtain the selected unit’s load/travel curve, setting schedule and acceptance test requirements; another maker’s catalogue range is not a JINYI capacity. Review the selection schedule together with the final drawing and inspection requirements.
Prepare the material and interface information
For a horizontal constant spring hanger enquiry, identify the required material designation and supplied condition. Describe the mating components, attachment method and environment. Include the operating temperature and any relevant pressure, movement or structural load. These inputs should describe the actual installation, including changes between normal operation, start-up and maintenance where applicable.
Specify coatings, surface finish and marking separately from the base material. If traceability is needed, identify the record required and how it must correspond to the delivered component. Agree whether inspection covers dimensions, material documentation, welds or functional testing; these are different checks with different acceptance criteria.
Custom horizontal constant spring hanger quotation
Attach the latest drawing revision, required quantity and delivery destination when contacting JINYI. Highlight departures from the illustrated arrangement, including changed dimensions, connections, finish and packing. For repeat orders, reference the approved configuration and list changes explicitly so an earlier drawing is not assumed to remain current.
Compare quotations using the same geometry, grade, supplied condition, unit of supply and inspection scope. A piece, a segment and a complete assembly can represent different quantities. Confirm quantity discounts and delivery terms with the final quotation.
Compare related component arrangements

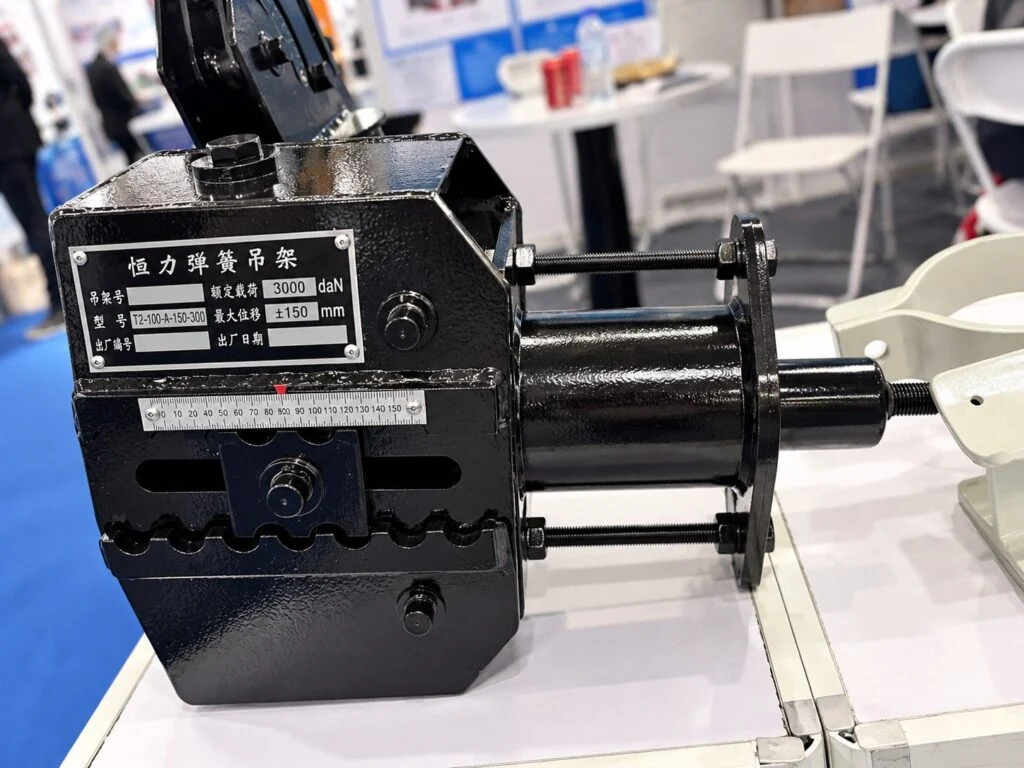

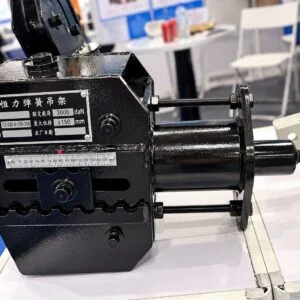

Evaluate this constant hanger by its actual horizontal layout and working travel and the required spring hanger arrangement. The photographs below show separate JINYI products for comparison. They are linked to their own technical pages and are not additional gallery views of this horizontal constant spring hanger.
| Photo | Related product | Selection detail |
|---|---|---|
 | Compact Constant Spring Support | Installation height and working travel. Compare this separate product when the drawing requires its particular arrangement. |

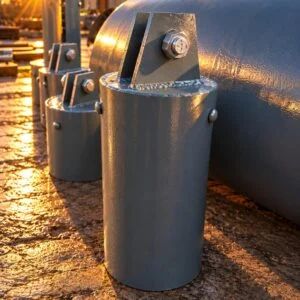

 | Spring Pipe Hanger | Spring travel and hanging load. Compare this separate product when the drawing requires its particular arrangement. |

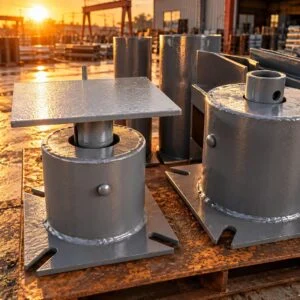

 | Base Mounted Spring Support | Spring travel and cold-hot loads. Compare this separate product when the drawing requires its particular arrangement. |
Questions to resolve before ordering
Which dimensions need checking first?
Start with horizontal layout and working travel and the mating or mounting detail. Check nominal designations against measured dimensions, then review the installation envelope. Photographs help identify the form; the drawing provides the dimensional basis for acceptance.
What should the quotation include?
A horizontal constant spring hanger quotation should identify the configuration, drawing revision, material, quantity, price basis and agreed inspection records. Keep these details together with the approved order so receiving inspection can compare the delivered product with the specified component.
Independent terminology reference
LISEGA pipe support selection families provides an independent reference for component terminology. Use the specified standard and edition where required by the project. This link does not establish JINYI certification, product approval or interchangeability with another manufacturer.
- Spec
- Defined configuration
- Grade
- Material requirement
- US$100.00
- Indicative unit price
- 3
- Quantity bands
- Product arrangement — Horizontal constant effort hanger
- Engineering selection — A constant effort unit must be selected by design load, total movement, mounting type and available space together. Horizontal suspension and compact floor support are different arrangements. Obtain the selected unit’s load/travel curve, setting schedule and acceptance test requirements; another maker’s catalogue range is not a JINYI capacity.
- Quotation scope — Material, drawing revision, quantity, inspection and delivery terms confirmed together
At a glance
- Product form
- Horizontal constant effort hanger
- Support type
- Horizontal constant effort hanger
- Design load
- Specify the required operating load in kN
- Total travel
- Specify movement, direction and travel reserve in mm
- Pricing
- Indicative USD pricing
| Support type | Horizontal constant effort hanger |
|---|---|
| Design load | Specify the required operating load in kN |
| Total travel | Specify movement, direction and travel reserve in mm |
| Mounting arrangement | Suspension or base support to installation drawing |
| Load variation | Agreed acceptance band over the working travel |
| Cold and hot settings | Set from the pipe stress analysis |
| Adjustment range | Confirmed for the selected support size |
| Travel stops | Defined for transport, erection and testing |
| Connections and envelope | Rod, pin, base and access dimensions to drawing |
| Factory acceptance | Load/travel test and setting record as agreed |
| Individually toleranced features | Limits and datum system on the approved drawing |
|---|---|
| General tolerances | Standard, edition and class apply only when specified |
| Constant-effort acceptance | Agreed load variation over the complete working travel |
